Sierra Radio Homebrew - 1998
Line



The following pictures are from KG5N (Nick, CQC #146) and show four views of his homebrewed Sierra project. Nick built the project, "from scratch," using the 1996 ARRL Handbook article as a guide. Nick etched the boards, bent the chassis, did the silkscreen work and everything else on his own! At our March '98 meeting club Prez WØHEP presented Nick our Technical Achievement award for a job well-done - congratulations Nick!



(Click on any of these "thumbnail" images for a full view...)

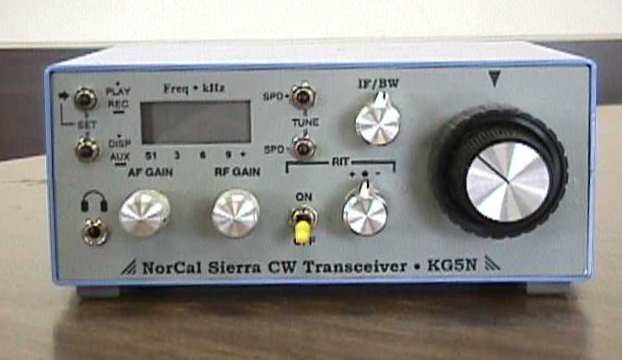

Sierra Radio Front View
Front View

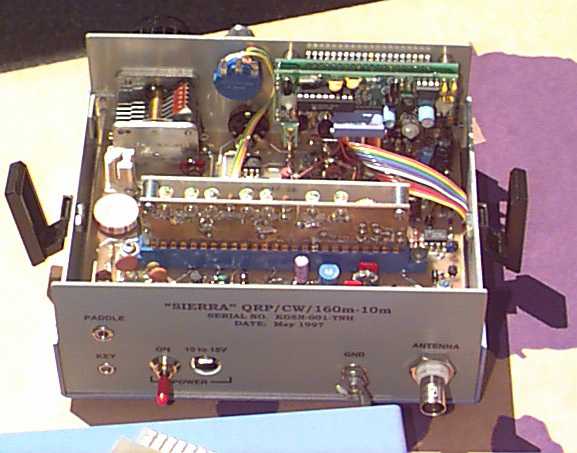

Sierra Radio Open Top view from Rear
Open Top View from Rear

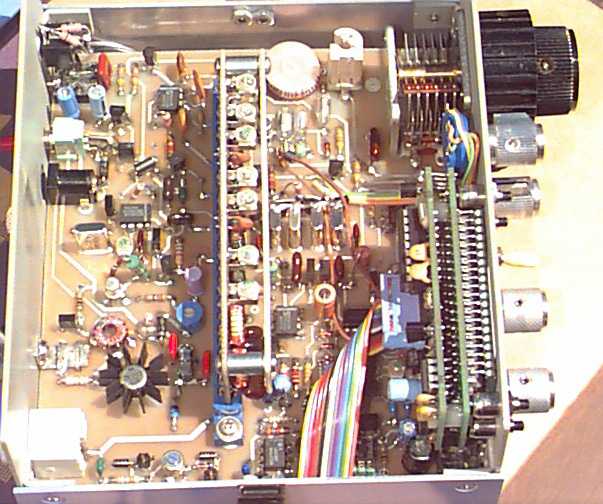

Sierra Radio Open Top view from Front
Open Top View from Front
Sierra Radio Open Top view from Side
Open Top View from Side
